Writeups

Operation Orchid

Last updated on Aug 30, 2024
1153 words, 6 min read

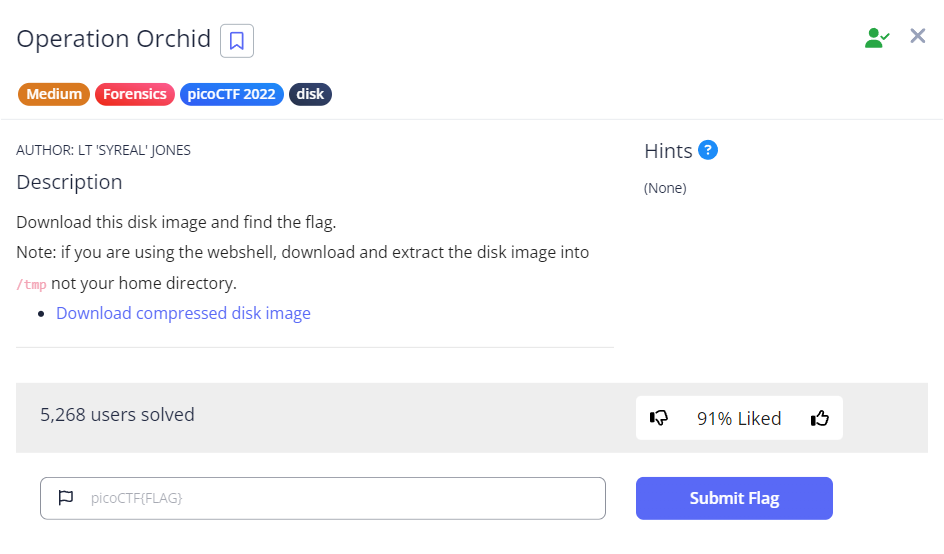

Challenge Description

Since this challenge provides a compressed disk image, we will probably have to use The Sleuth Kit (TSK) tools to assist us.

We first download the file using wget, then run gunzip <file-name> to expand the compressed disk image file.

Understanding the volume system

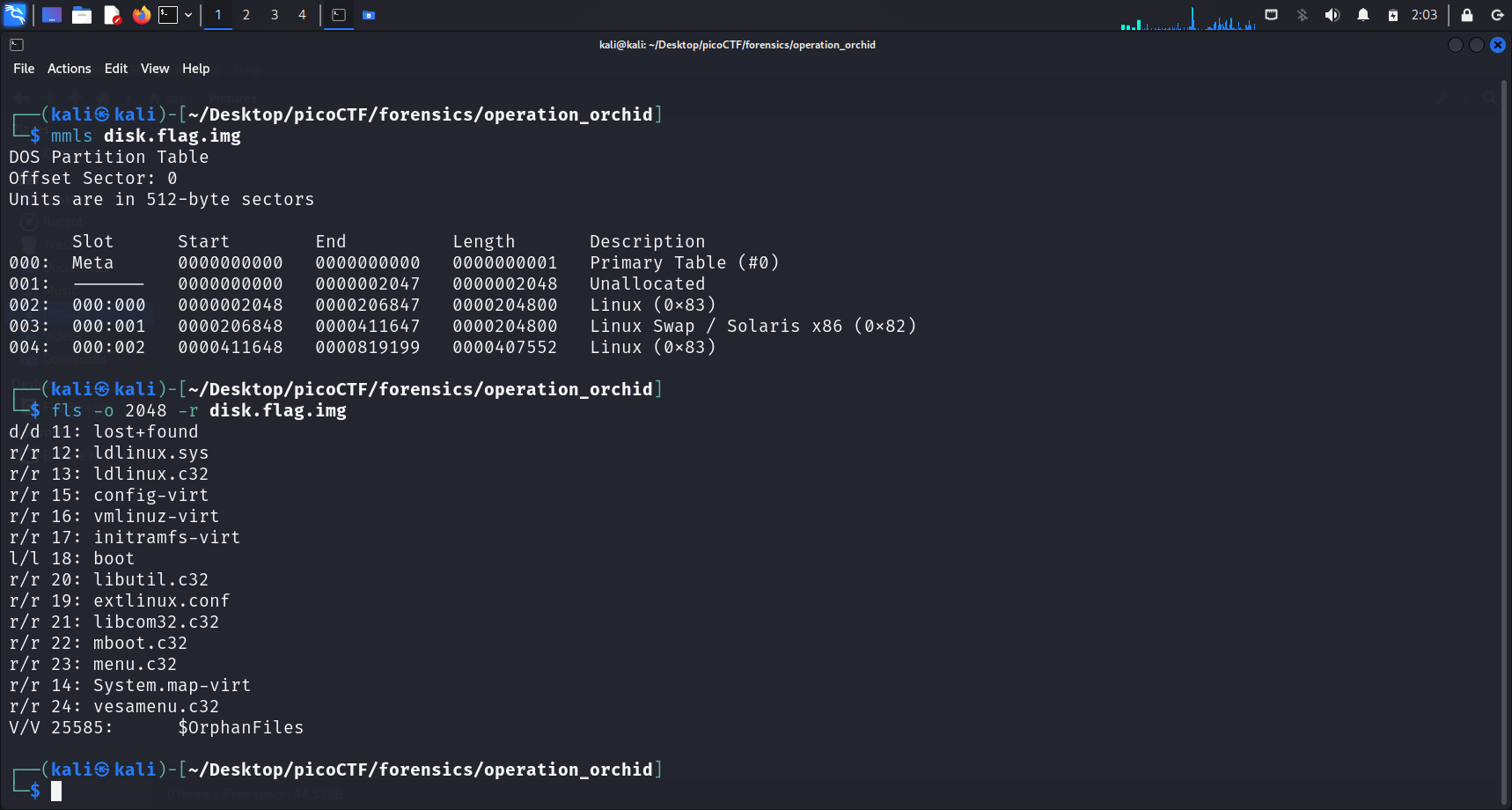

Running mmls displays the partition tables of this volume system. We see that there are 2 Linux partitions in the downloaded disk image. We shall check both.

fls

We run fls -o <img-offset> -r <disk-img-name> to list the file and directories names in the disk image.

The -r argument allows us to recursively display directories.

Running this command on the 2048 offset did not show anything suspicious. However, running this command on the 411648 offset displays an overwhelming number of files and directories. So we shall zoom in to this.

Finding the Flag?

I continued and tried to use grep "flag" to check if there is any file or directory that contains the word “flag” in its name. Indeed, running this command revealed 2 files, flag.txt and flag.txt.enc.

Unallocated space

r/r * 1876(realloc): flag.txt

According to the official The Sleuth Kit (TSK) fls command page:

If the file name is in unallocated space of the directory, there will be a '*' between the file type(r/r)
and the metadata address.

`r/r * 1304-128-1: IO.SYS`

In general, this means that the file is deleted. But, some file systems keep the directory
contents sorted and will move file names around. This can result in unallocated copies of the file
name, even when the file is still allocated. As of version 3.0.0, TSK suppresses duplicate
file names and will suppress a deleted version of a name if an equivalent allocated version exists
(equivalent is defined as the same name and pointing to the same metadata address).

Sometimes, you will see the text '(realloc)' after the metadata address.

`r/r * 1304-128-1(realloc): IO.SYS`

This occurs when the file name is in an unallocated state and the metadata structure is in an allocated
state. This can only occur on file systems that separate the file name from the metadata
(such as NTFS, Ext2/3, UFS, etc.). Seeing '(realloc)' with versions of TSK 3.0.0 and greater
(because of the duplicate name suppression) is generally an indication that the metadata structure has
been reallocated to a new file and therefore not likely to be the metadata or file content that
originally corresponded to this file name.

Conclusion

r/r * 1876(realloc): flag.txt was displayed when we successfully used grep to find files with “flag” in their names. From the above excerpt, this indicates that the file name is in an unallocated state (meaning the file has been deleted or moved), but the metadata structure (the detailed information about the file) is still in an allocated state.

See also: Unallocated vs Allocated

Hence, as expected, running cat flag.txt did not show anything special.

However, the contents of flag.txt.enc is as follows:

Salted__S�+%���+�O��k�ђ(A����c��
                                @]ԣ
L�ޢȤ7� ���؎$�'%

It seems like the contents have been encrypted. A salt was used in the encryption process, as we can conclude from “Salted”.

Salt

What is a salt?

In cryptography, a salt is random data fed as an additional input to a one-way function that hashes data, a password, or passphrase. Salting helps defend against attacks that use precomputed tables (E.g. rainbow tables) by vastly growing the size of table required for a successful attack. It also helps protect passwords that occur multiple times in a database, since a new salt is used to each password instance (Salt (Cryptography), 2024).

Other than this, we basically have no other information about how we can decrypt the content of this file. Hence, I ran the following command to gather more information:

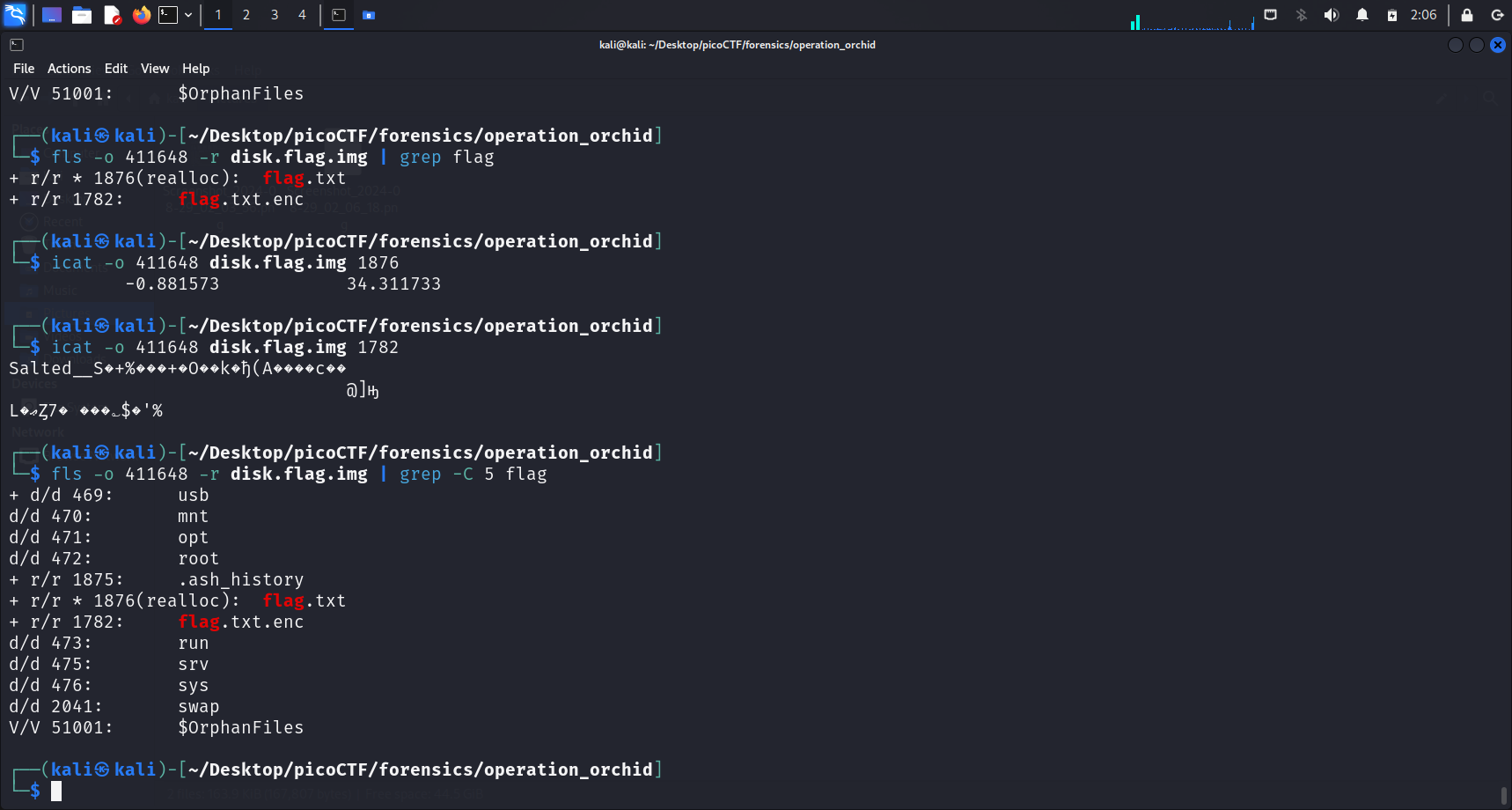

fls -o 411648 -r disk.flag.img | grep -C 5 flag

The -C argument displays the lines before and after the matching line(s). We can then specify the number of lines we would like to display.

  • -C 5: Only displays 5 lines before and after the matching line(s)

Additional information: Before and After matching line(s)

  • -A: displays the lines after the matching line(s)
  • -B: displays the lines before the matching line(s)

This command displayed a .ash_history file at inode 1875.

What is .ash_history?

This command displayed the inode number of .ash_history (1875).

This file typically stores the command history for the ash shell, recording the commands users executed. It functions similarly to .bash_history in the Bash shell or .zsh_history in Zsh.

This is the reason why we can see our past commands which we ran or tried to execute when we press the up/down arrow (Vconnectit, 2018).

Reverse engineering for the flag

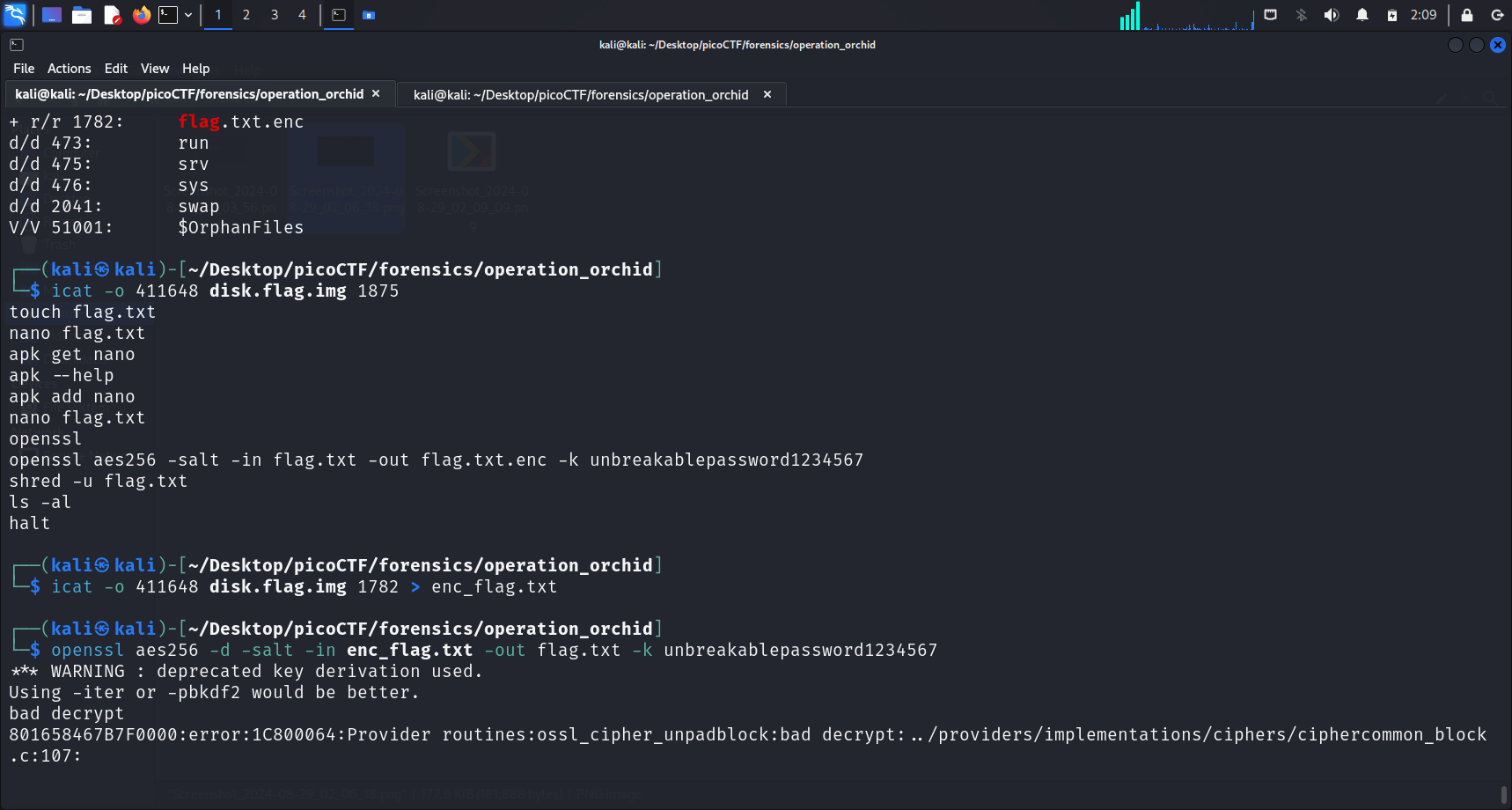

We can check the contents of .ash_history by running the command below:

icat -o 411648 disk.flag.img 1875

These are the displayed commands in .ash_history:

touch flag.txt
nano flag.txt
apk get nano
apk --help
apk add nano
nano flag.txt
openssl
openssl aes256 -salt -in flag.txt -out flag.txt.enc -k unbreakablepassword1234567
shred -u flag.txt
ls -al
halt

Recall: Unallocated Space

We have previously established above that the flag.txt is in an unallocated state. Now, we understand the reason why. The command shred -u flag.txt was run, securely deleting the original flag.txt file by overwriting it and then deallocating and removing it.

From the above displayed contents, we can also pick out the command used to encrypt the file:

openssl aes256 -salt -in flag.txt -out flag.txt.enc -k unbreakablepassword1234567

We can see that the key used for encryption is unbreakablepassword1234567.

What this command does

The command takes the contents of flag.txt, encrypts it using AES-256 with a key derived from the provided password (unbreakablepassword1234567), and outputs the encrypted content to a new file called flag.txt.enc.

The encryption process is made more secure by adding a salt, which ensures that even if the same content and password are used in the future, the resulting ciphertext will be different.

Advanced Encryption Standard (AES)

AES is a symmetric encryption algorithm, meaning the same key is used for both encryption and decryption.

Since we now understand how the contents in flag.txt.enc was encrypted, we can decrypt it as well using OpenSSL.

We first store the encrypted contents into a file called enc_flag.txt, by running:

icat -o 411648 disk.flag.img 1782 > enc_flag.txt

This is to create a file in our local directory, which will be the input file used for decryption.

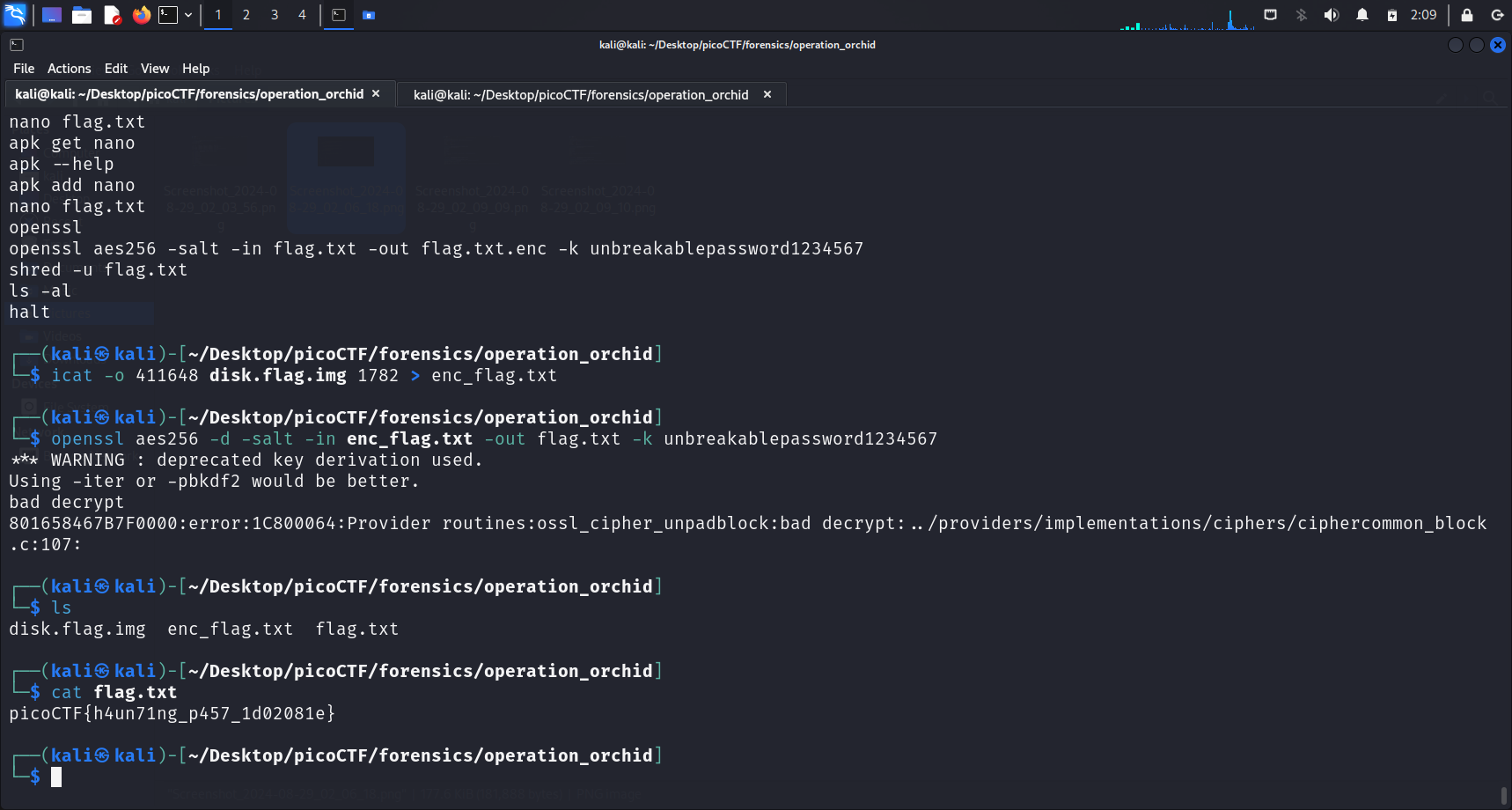

The command to decrypt the encrypted contents is:

openssl aes256 -d -salt -in flag.txt.enc -out flag.txt -k unbreakablepassword1234567

The -d option tells OpenSSL to decrypt the contents of the input file. This command stores the decrypted output in the flag.txt file, which we can then run cat on to get the flag.

Flag

picoCTF{h4un71ng_p457_1d02081e}
